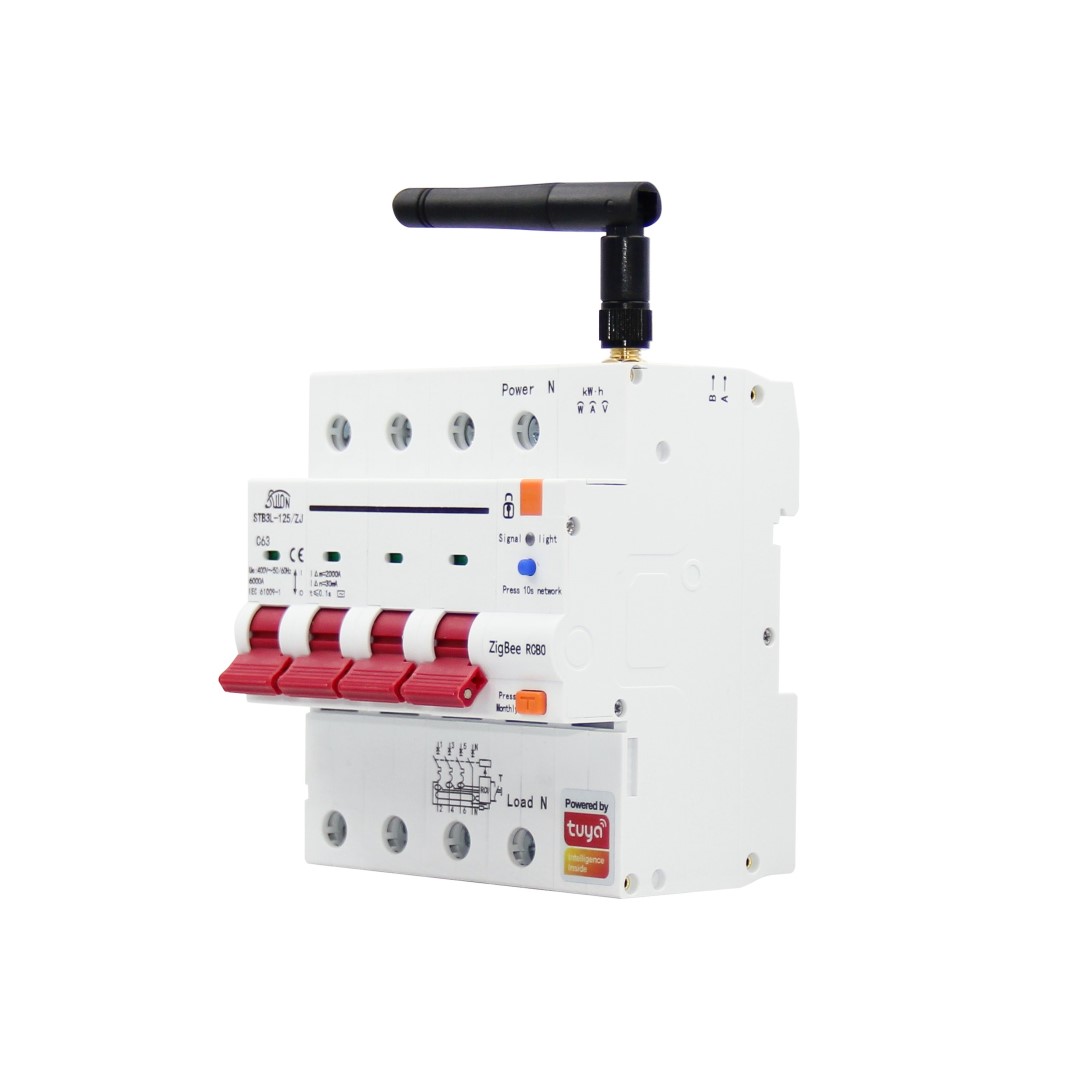

Immax NEO Smart circuit breaker 3P+N 10-63A with current protector, power metering, Zigbee 3.0

The circuit breaker must be within range of the smart gateway. ATTENTION - this is not a WiFi device, it requires Immax NEO BRIDGE PRO Smart Zigbee 3.0 (sold separately) or another TUYA hub based on the ZigBee 3.0 standard.

Technical parameters:
Protocol: ZigBee 3.0
Zigbee frequency: 2.405~2.480GHz
Maximum output power: +10dBm, output power dynamics >35dB
Communication protocol: Zigbee, Tuya support.
Wireless range: direct visibility 30m, in built-up areas 10m.
Zigbee repeater: yes
Network standby power (Pnet): 0.4W
Nominal operating voltage: AC 230V/400V
Current frequency: 50/60 Hz
Maximum rated current: 63 A
Short-circuit breaking capacity (Ics): 6000 A
Current protection: 10A, 32A, 40A, 50A, 63A (adjustable in the application)
Load characteristics: B, C, D (according to settings in the application)
Operating position indicator: yes
Overvoltage protection: 220-265 V (adjustable in the application)
Undervoltage protection: 150-250V (adjustable in the application)
Thermal fuse, overheating protection: yes
Current fuse, overvoltage and overload protection: Yes
Mechanical service life: 10,000 switching operations
Electrical service life: 3,000 switching operations
Automatic restart after power failure:
In automatic mode: If no fault is detected, the device will automatically restart within 3 seconds.
In manual mode: The device cannot be restarted automatically
Operating temperature: -25 °C to 70 °C
Material: PC V0 flame retardant
Mounting: On standard DIN rail 35.5 × 7.5 mm.
Wire connection terminals
Maximum wire cross-section: 35 mm2
Pollution degree: 2
Dimensions: 135 x 90 x 74 mm
Weight: 504 g
Protection rating: IP20
Package contents: circuit breaker, antenna, user manual
