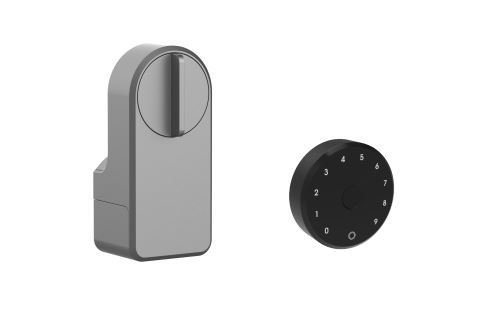

Immax NEO PRO smart door lock with keypad, BT

The installation is only suitable for locks with a cylinder insert with a through (pass-through) coupling.
To connect to the app, you need a smart gateway with BLE support (e.g., 07117-4).

Technical specifications:
Door lock
Color: gray
Batteries: 4xAA 1.5V batteries (not included)
Battery life: up to 300 days
Protocol: BLE
Frequency: 2400MHz~2483.5MHz
Maximum RF output power: BLE: 4dBm
Protection rating: IP20
Operating temperature: -10 ~ + 55 °C
Operating humidity: max 85% RH (non-condensing)
Dimensions: 13.6 x 6.3 x 4.8 cm
Weight without batteries: 216g

Keyboard
Color: black
Batteries: 2xAA 1.5V batteries (not included)
Battery life: up to 300 days
Protocol: BLE
Frequency: 2400MHz~2483.5MHz
Maximum RF output power: BLE: 4dBm
Protection rating: IP53
Operating temperature: -20 ~ + 60 °C
Operating humidity: max 85% RH (non-condensing)
Dimensions: 7.9 x 2.3 cm
Weight without batteries: 87g

Package contents: Smart door lock, keypad, installation accessories, user manual
