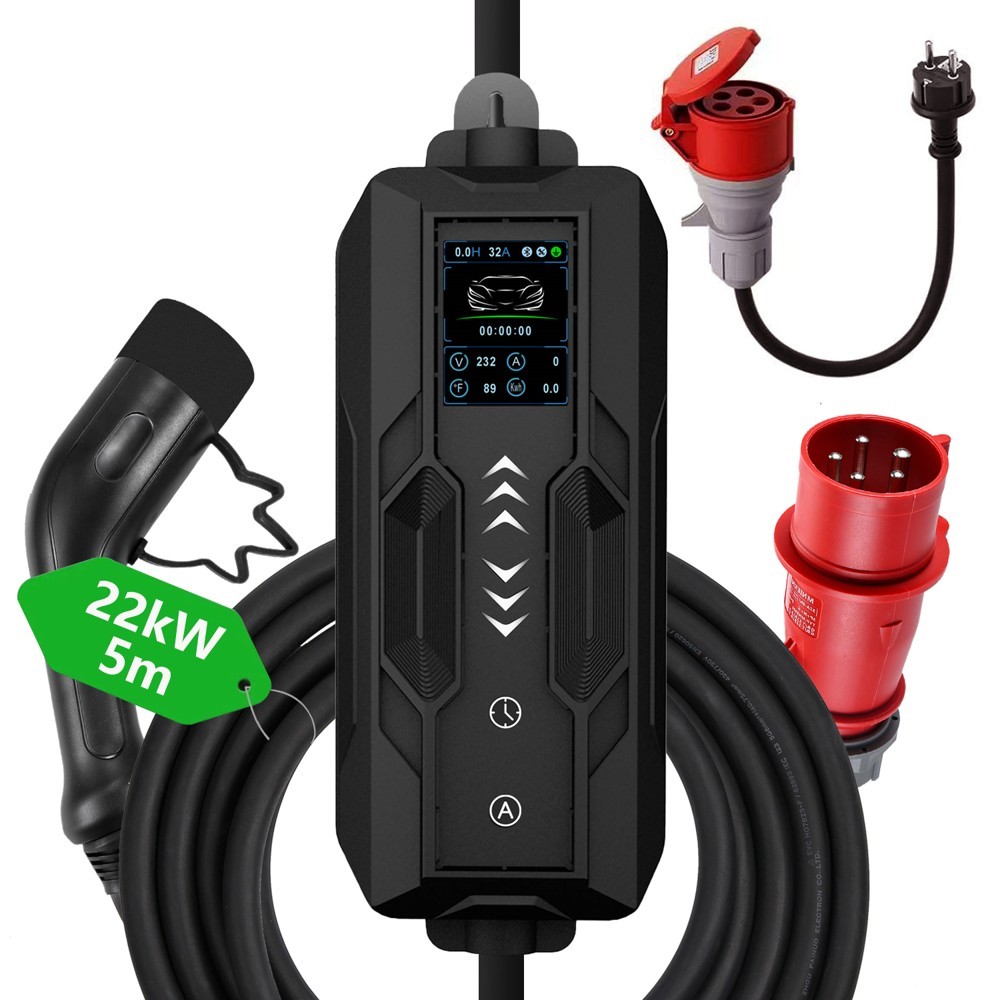

Immax travel charging station for electric cars EV/PHEV AC Type 2 22 kW
Specifications:

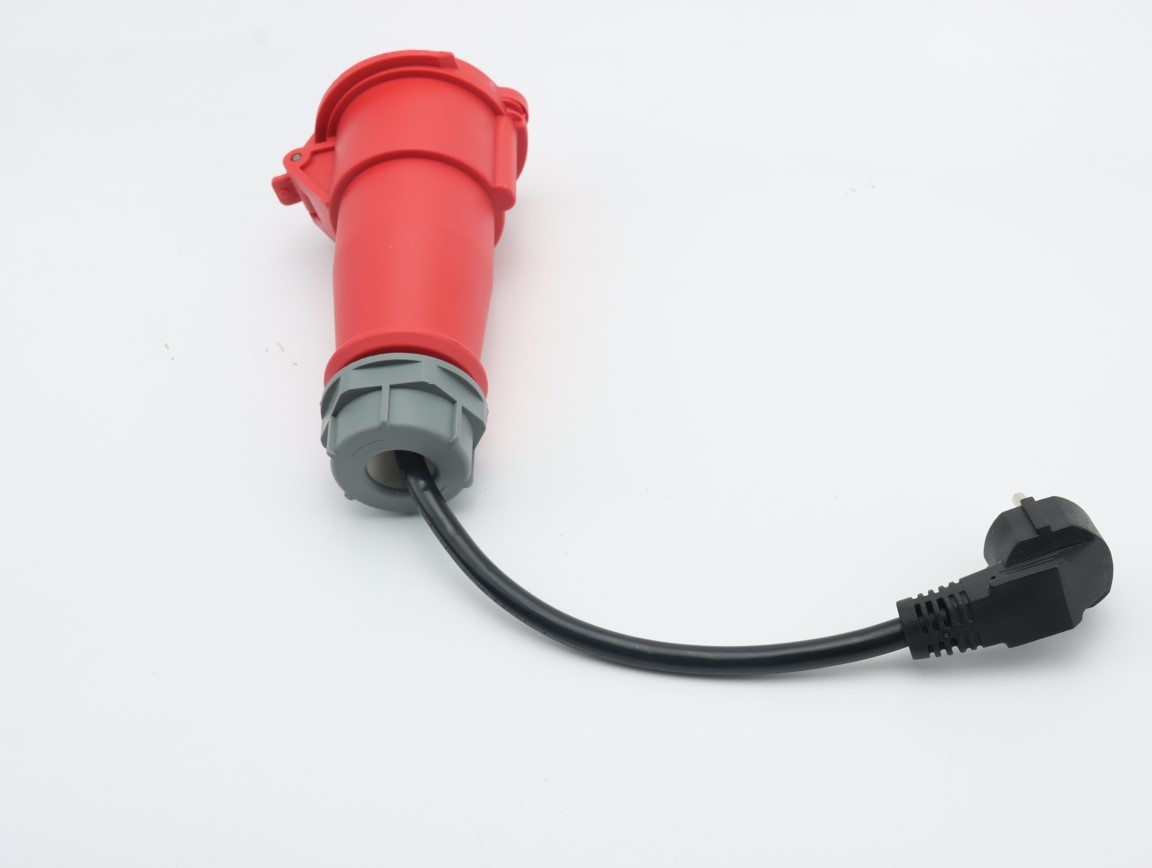

European standard plug (CEE red) 3 phases
Cable length: cable length: 5 meters (16.5 feet)
Rated input voltage: 85-380 V AC
Rated output voltage: 85-380 V AC
Rated current: standard 32 A, adjustable 10/16/24/32 A
Rated power: Fast charging: up to 22 kW
Residual current protection: Type A+DC 6mA (30mA AC RCD + 6mA DC RCD).
Cable insulation resistance: >1000MG (DC500V)
Contact resistance: 0.5mG MAX
Fire resistance of housing: UL94V-0
Wire harness size: 5x6mm2 + 1x0.5mm2

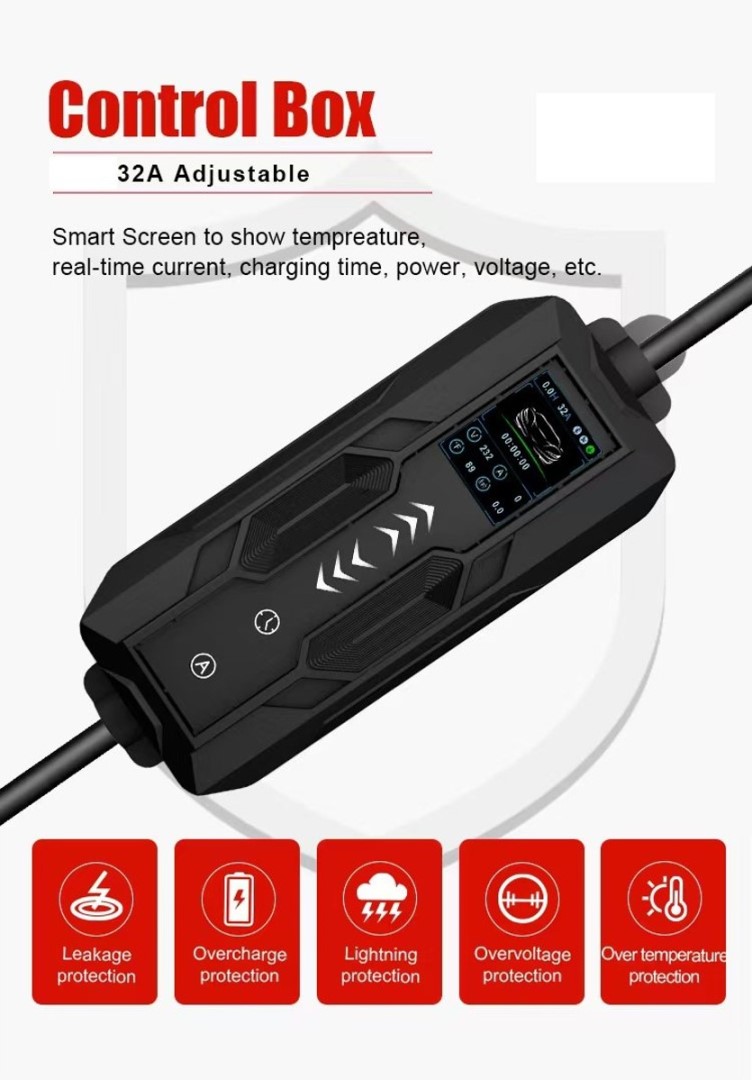

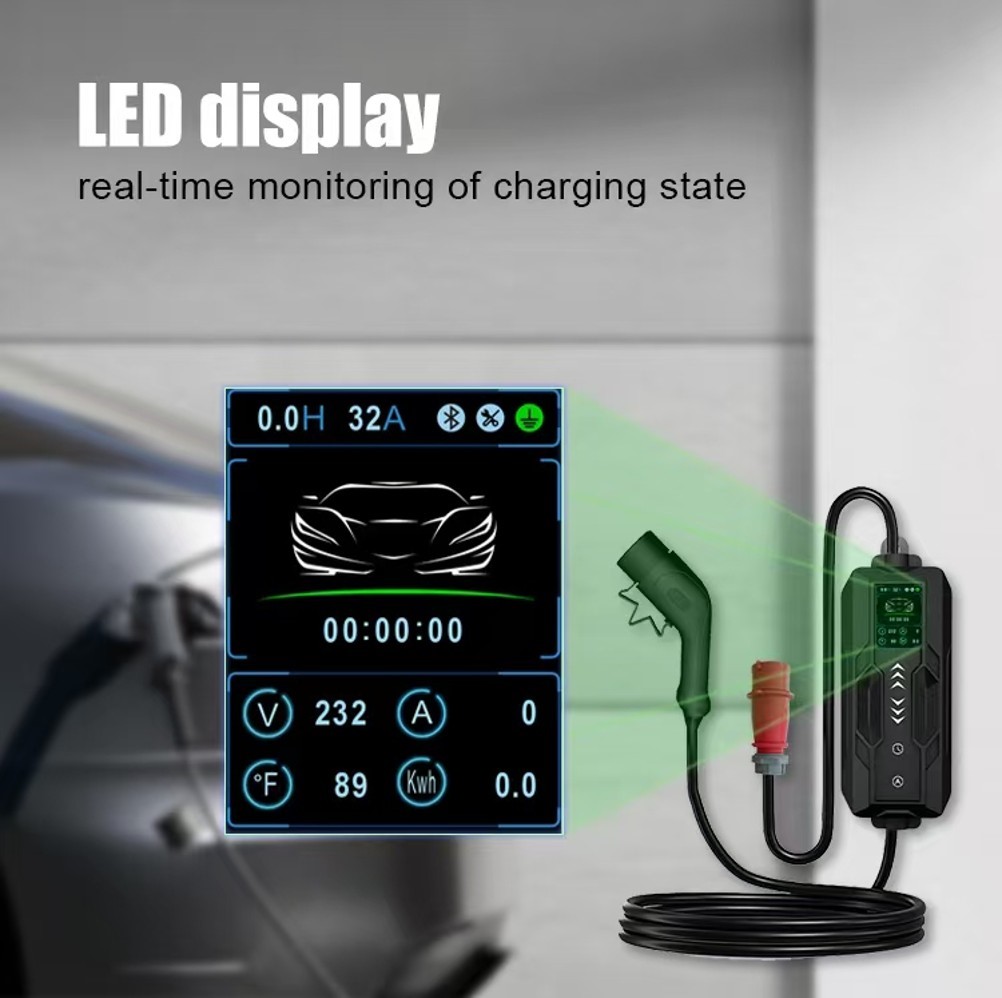

With LED display to display temperature, charging time and actual current
With leakage protection, overvoltage or undervoltage protection, overload protection (self-recovery), lightning protection, overheat protection
