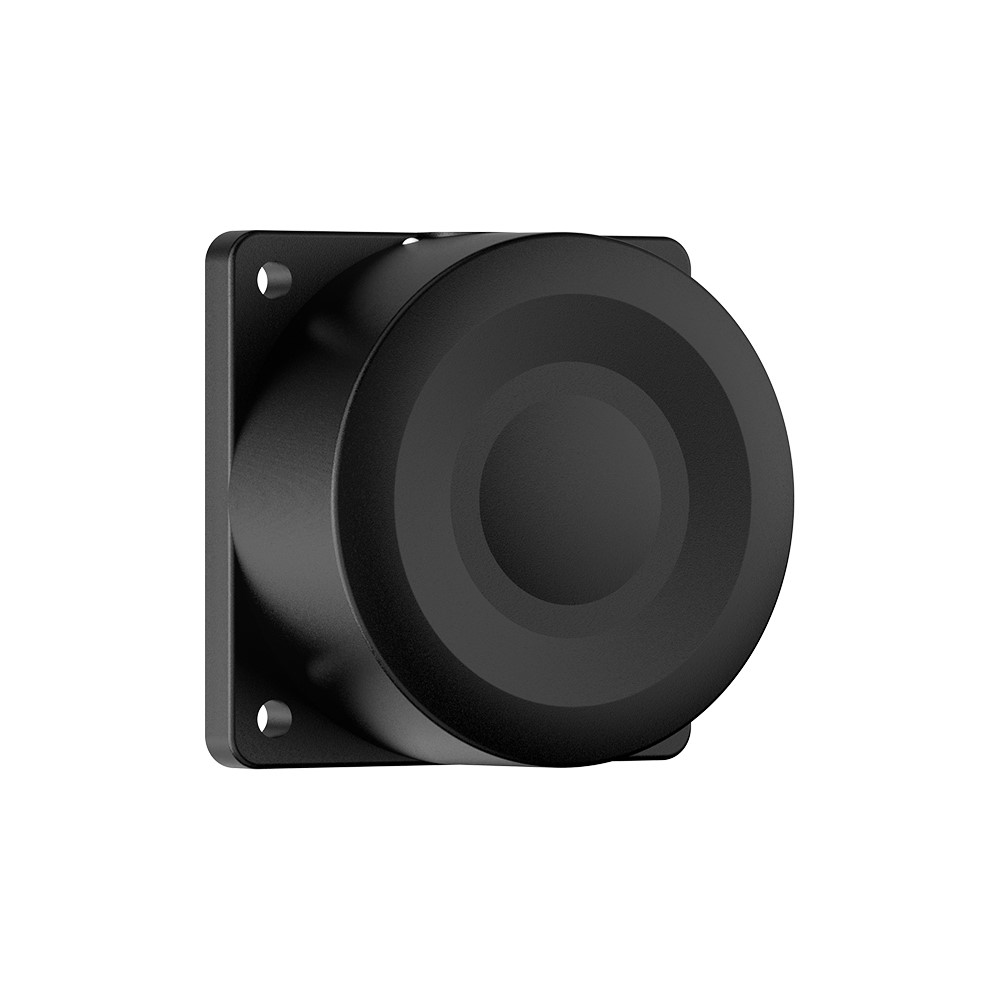

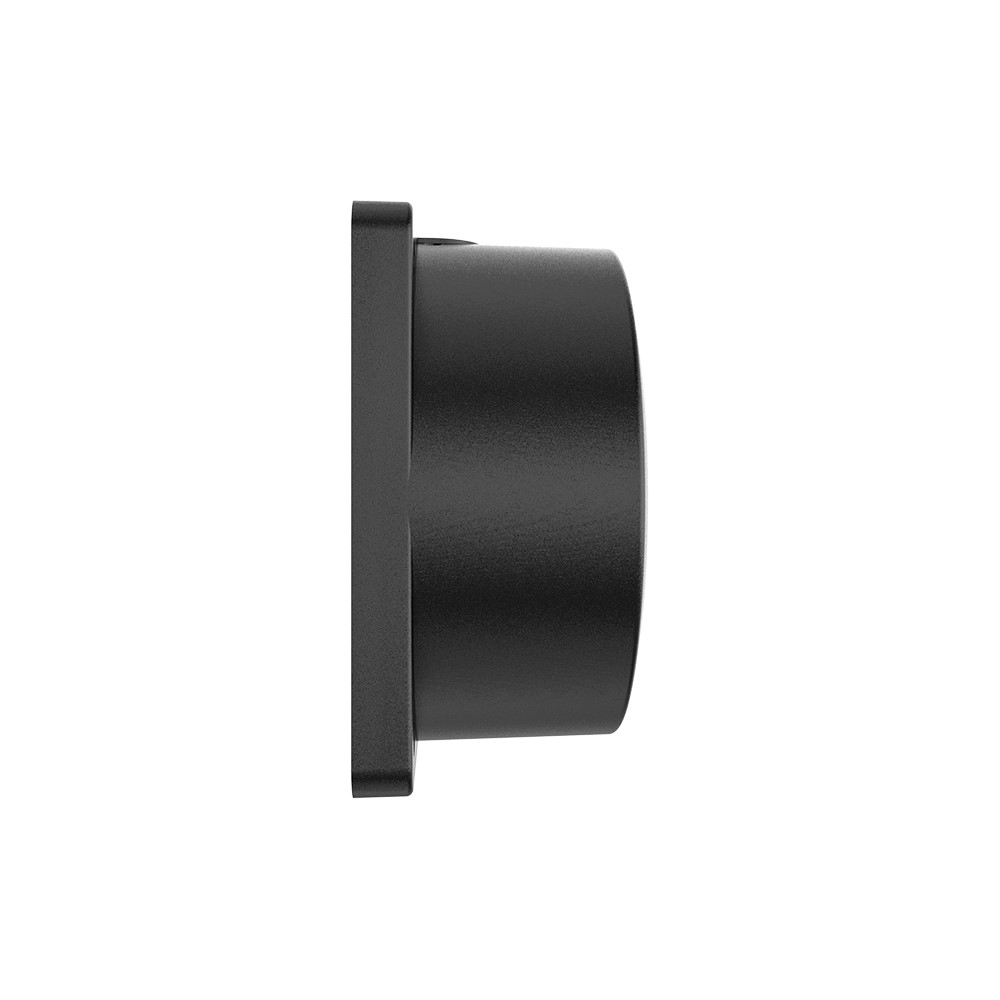

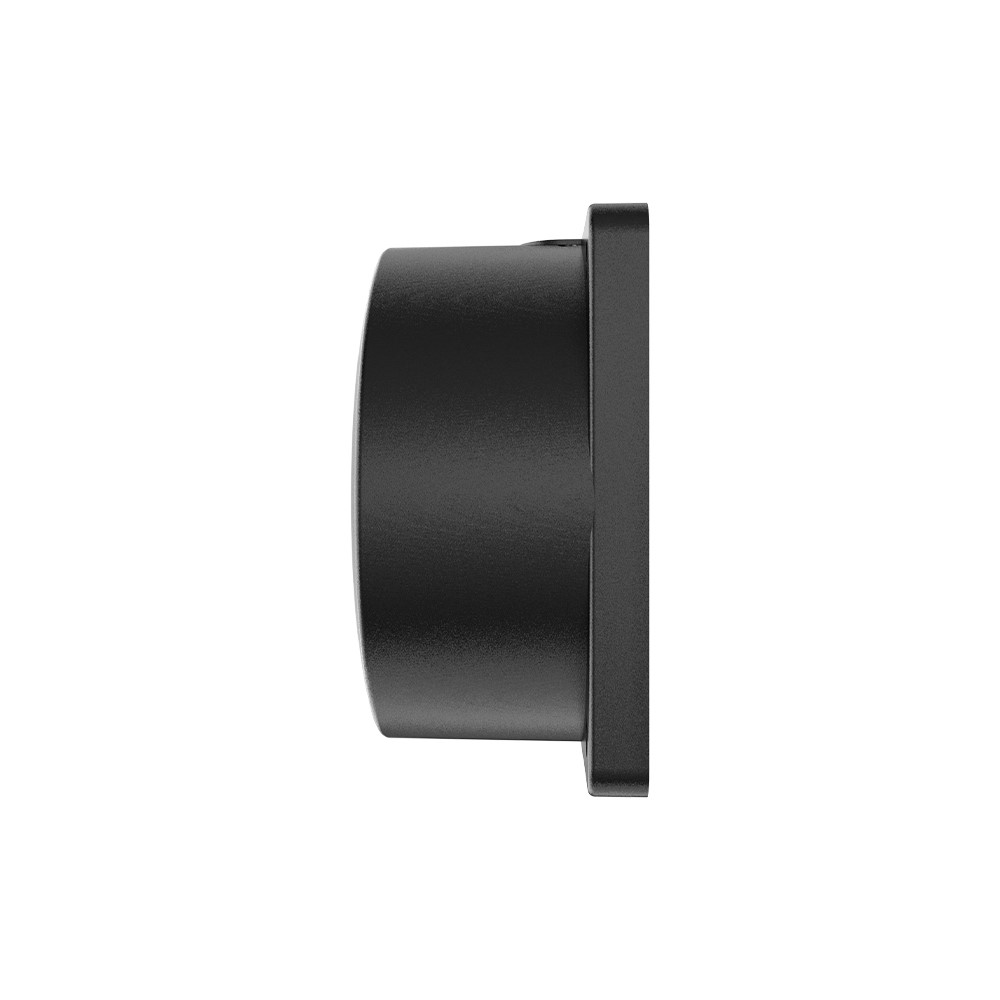

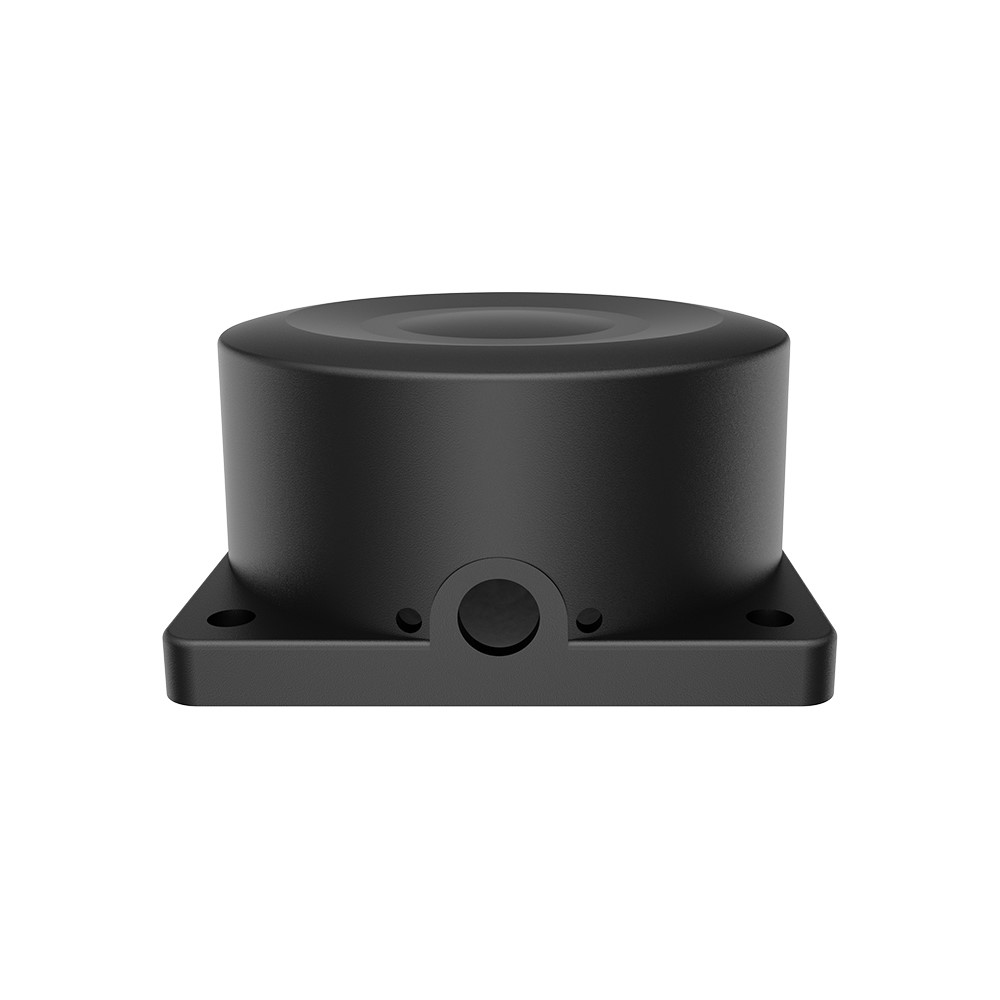

Immax NEO Smart ultrasonic liquid level sensor, 5 m, WiFi

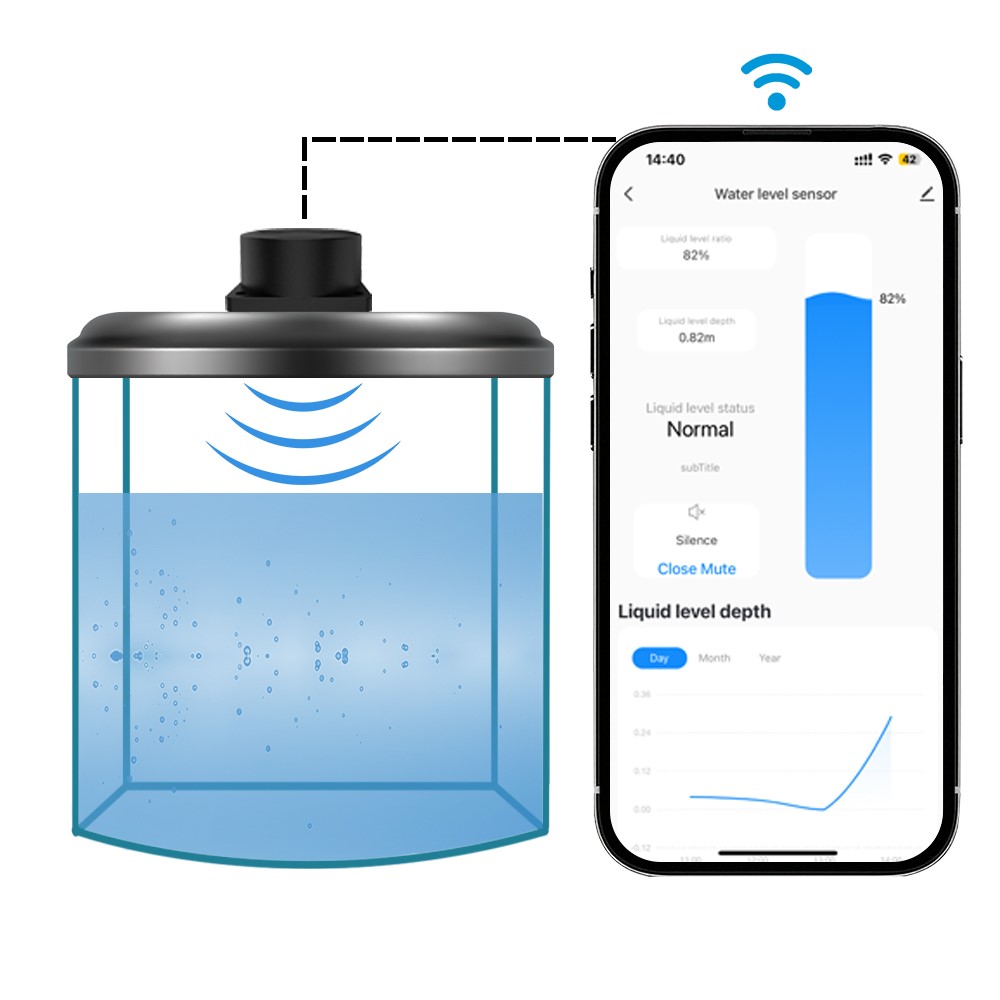

Use the Immax NEO Smart liquid level sensor to conveniently monitor the liquid level in the Immax NEO PRO app – from anywhere, anytime.
Set alerts for excessively low or high liquid levels.
Accurate measurement using ultrasonic technology, suitable for any type of liquid.
IP65 resistance ensures reliable operation even in outdoor environments.
Can be connected to a smart water valve – automatic refilling when the tank is empty and shutdown when the maximum level is reached.

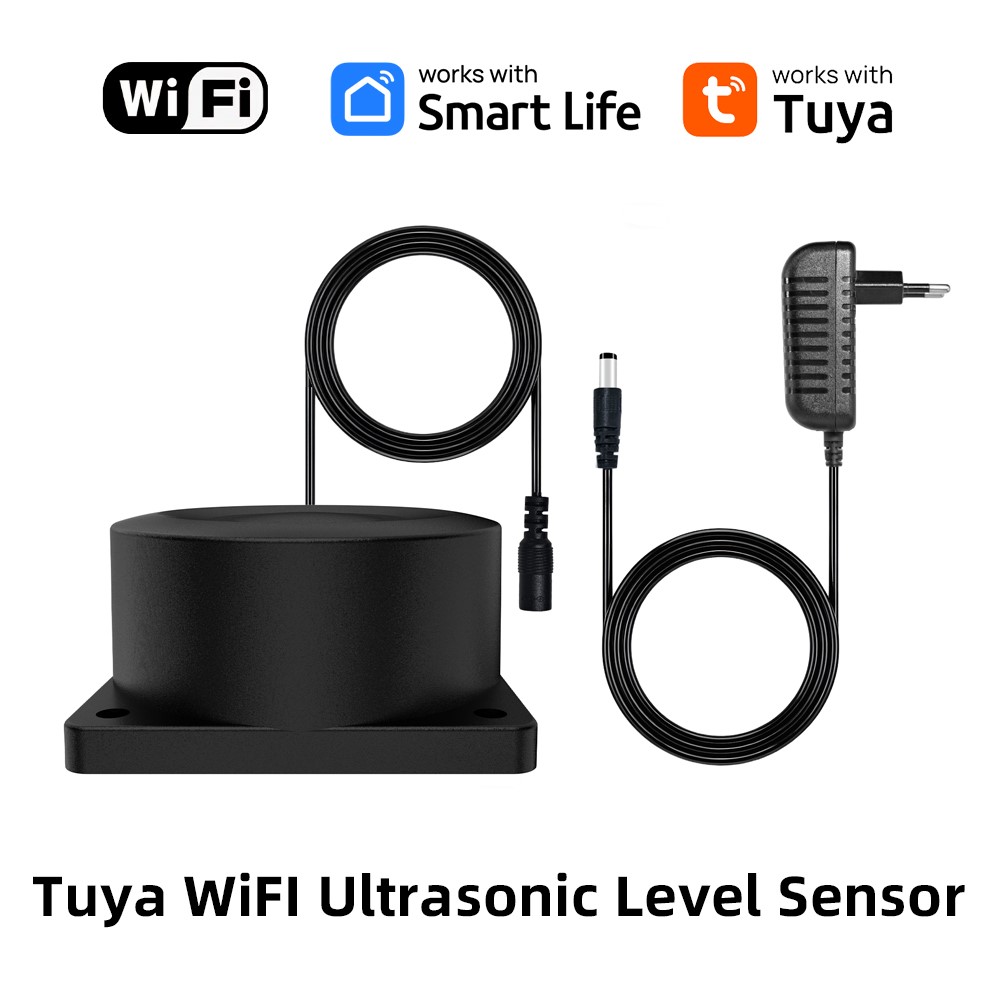

The Immax NEO PRO app is available in Czech and 60 other languages, compatible with iOS, Android, voice assistants – Apple Siri shortcuts, and TUYA and LIDL systems.
More about the productIn stock
Warranty 24 months
Recycling fee 0 EUR
Technical specifications:
Communication protocol: WiFi
Frequency: 2.4 GHz IEEE 802.11b/g/n
Maximum RF output power: WiFi - 20dBm
Wireless range: 30 m direct visibility, 5 m in built-up areas
Sensor input voltage: DC5V 1A
Power supply input voltage: AC 220V-230V / 50-60Hz
Operating current: > 55 mA
Detection technology: ultrasonic
Detection range: 0.1 m – 5 m
Installation height: max. 5 m
Accuracy: ±0.02 m
Beam angle: 15° (max 20°)
Operating temperature: -20°C to + 70°C
Operating humidity: 0 to 100% RH
Protection rating: IP65
Certificates: CE

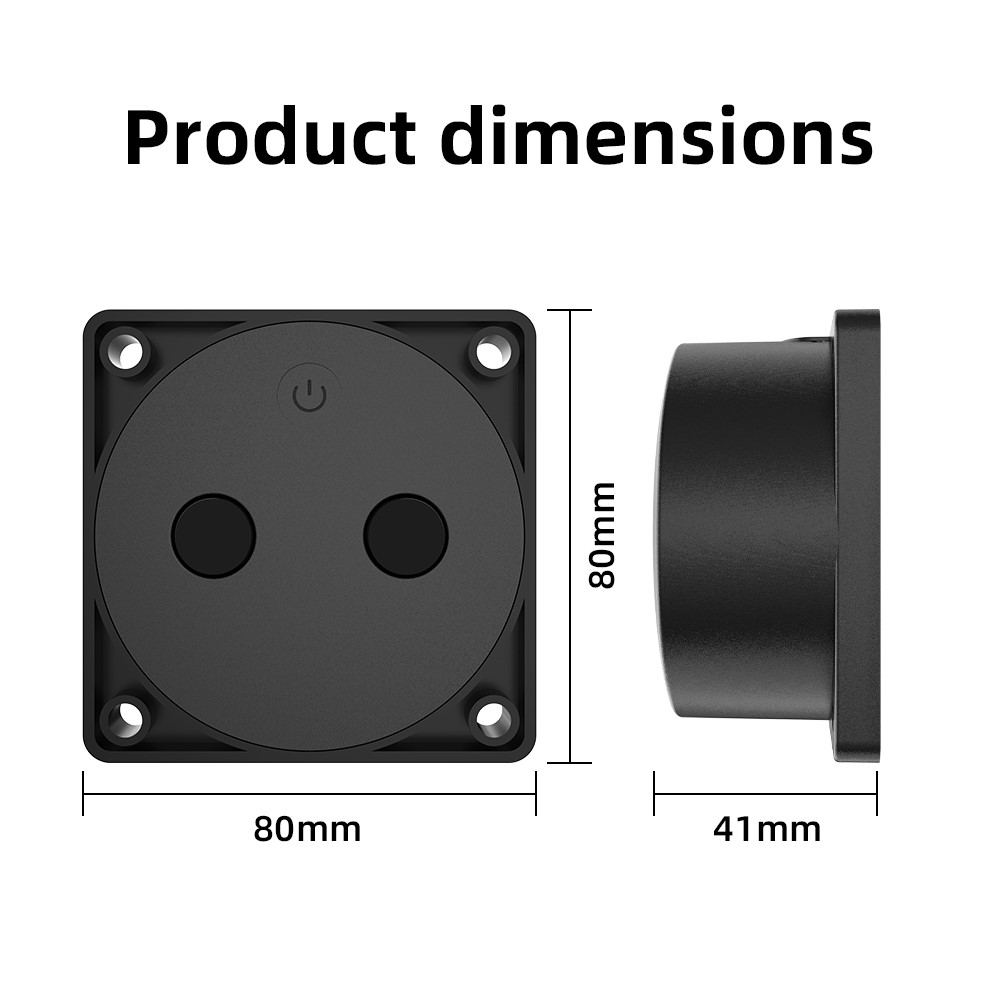

Dimensions: 80x80x41mm
Weight: 310g

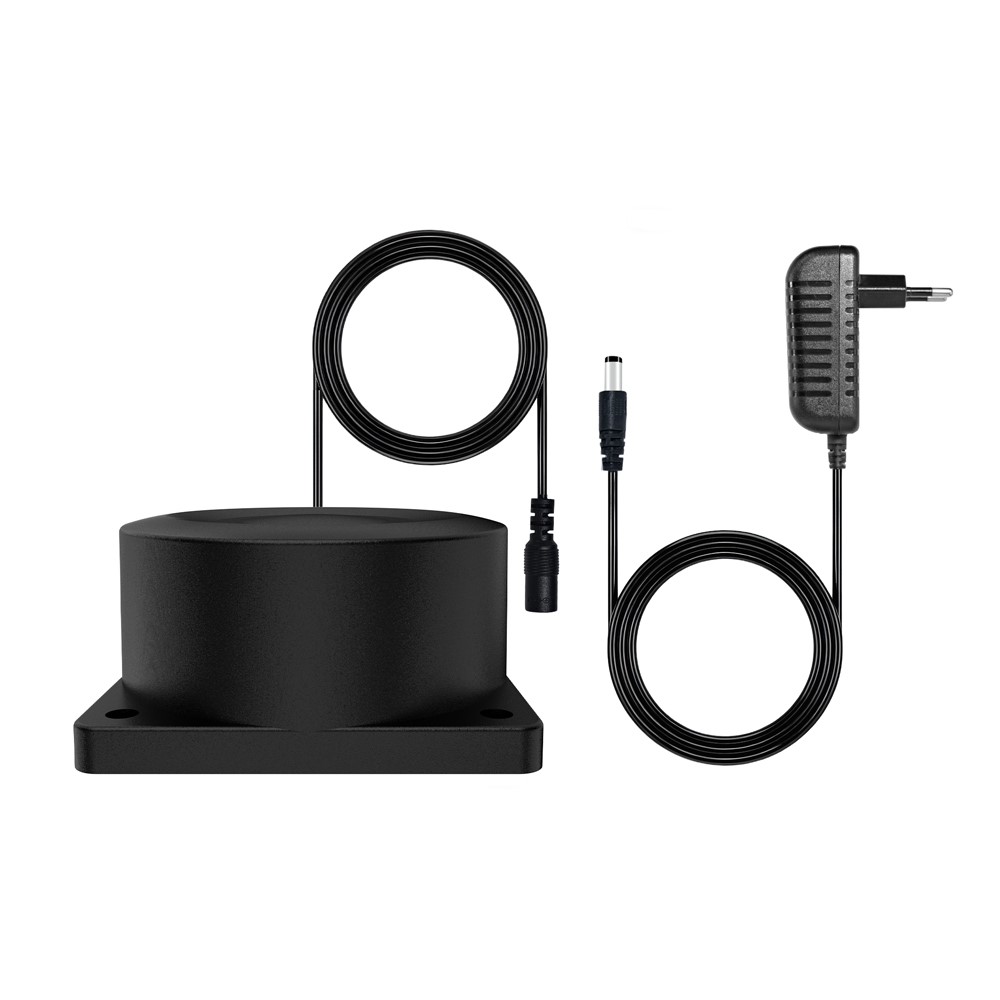

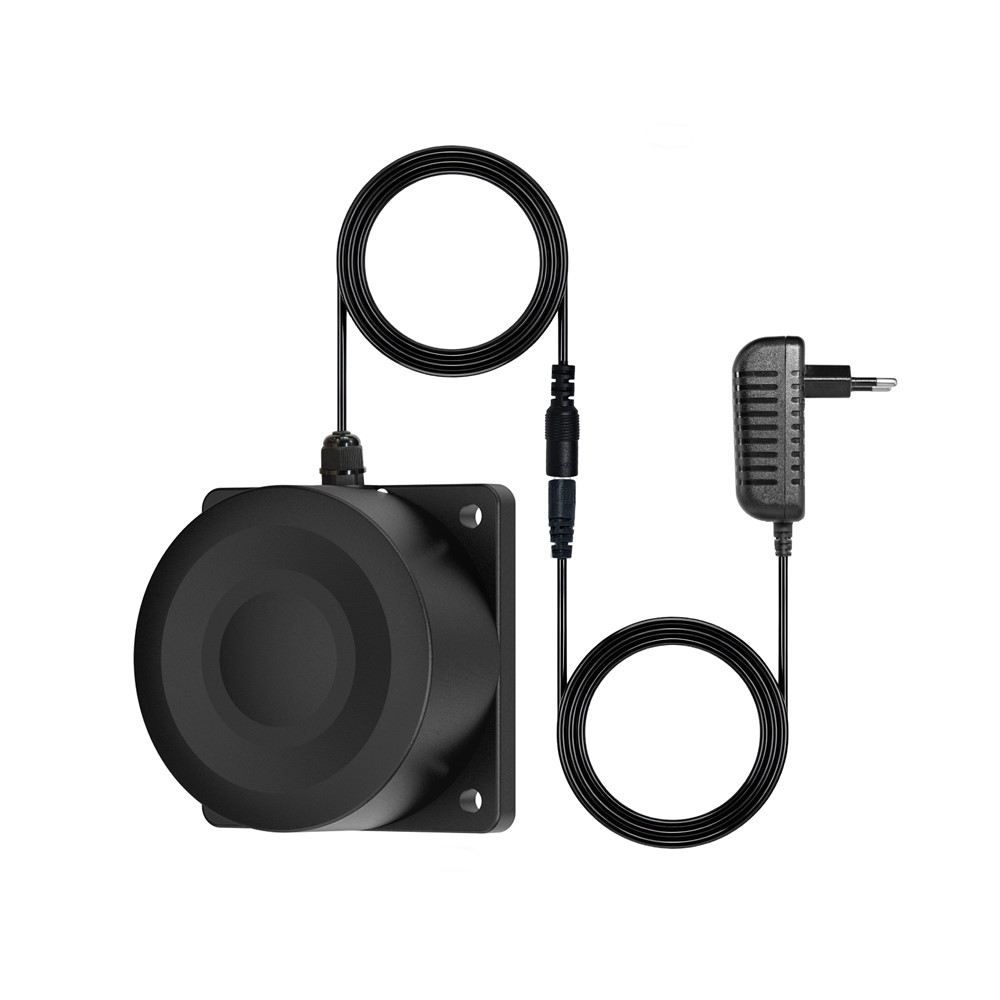

Package contents: sensor, power adapter, installation material, user manual
Obrázek (2)
Obrázek (3)
Obrázek (1)
Obrázek (4)
Obrázek (5)
Obrázek (6)
Obrázek (8)
Obrázek
Obrázek (9)
Obrázek (10)
Obrázek (11)
Obrázek (12)
Obrázek (13)
Obrázek (14)
Obrázek (15)
Obrázek (7)| Function | Intelligent, Senzor |
| Compatibility | Apple Siri shortcuts, Lidl, Tesla, Tuya (SmartLife) |
| Connection type | 2,4GHz Wi-Fi 802.11 b/g/n |
| Degree of protection | IP65 |
